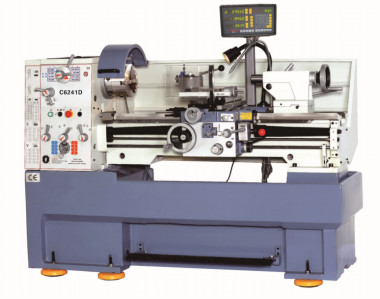

CD6241 lathe machine
    CD6241 lathe machine

Product Description:



Model

CD6241x1000/1500

Max Swing over bed

410mm

Max swing over cross slide

255mm

Max swing in gap

580mm

Max length of workpiece

1000 or 1500mm

Width of bed

250mm

Spindle speed range

16changes 45-1800r/min

Spindle bore

Φ52mm

Spindle nose

D1-6

Taper of spindle bore

MT6

Centre height

205mm

Threads metric pitches

0.2-14mm/39kinds

Threads imperial pitches

2-72T.P.I/45kinds

Threads diametral pitches

8-44D.P./21kinds

Thread module pitches

0.3-3.5M.P./18kinds

Compound rest travel

140mm

Cross slide travel

210mm

Max section of tool

20x20mm

Longitudinal feeds range

0.05-1.7mm/rev

Cross feeds range

0.025-0.85mm/rev

External diameter

50mm

Max travel

120mm

Taper of bore

MT4

Main Motor power

2.2KW/3.3KW 3PH

Coolant pump power

120W/3PH

Package size

2070/2575x926x1635mm

Net weight

1350/1550KG
