Model

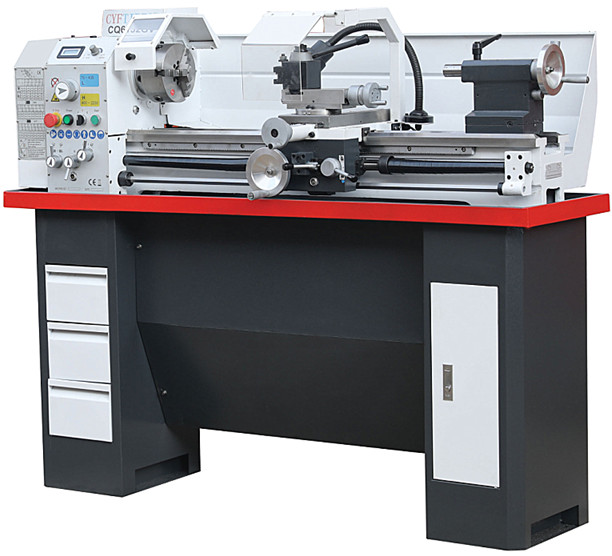

CQ6132GVx900

Max Swing over bed

320mm

Max swing over cross slide

200mm

Max length of work pieces

900mm

Taper of spindle bore

MT5

Spindle hole

38mm

Spindle speed range

75-435rpm 400-2250rpm

Longitudinal feed per revolution of spindle

0.017-0.25mm/r

Transverse feed per revolution of spindle

0.07-0.52mm/r

Range of inch threads to be cut

8-56T.P.L(21kinds)

Maximum tool size

0.20-3.5mm(18kinds)

Range of metric threads to be cut

16x16mm

Diameter of tail stock sleeve

32mm

Taper of tail stock sleeve

 MT3

Max travel of tail stock sleeve

80mm

Motor frequency

5-100hz

Motor power

         1.5kw

Package size

1600x750x700mm

N.W/G.W

300/350kg
