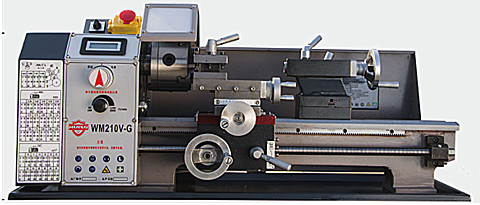

WM210V-G mini lathe machine
    WM210V-G mini lathe machine

Product Description:



Model

WM210V-G

Max Swing over bed

210mm

Max swing over cross slide

134mm

Distance between centers

400mm

Width of bed

100mm

Spindle bore

Φ21mm

Taper of spindle bore

MT3

Number of spindle speeds

Variable

Spindle speed range

50-2500rpm

Number of metric threads

15

Range of metric threads

0.3-3mm

Number of imperial threads

12

Range of imperial threads

10-44T.P.I

Range of longitudinal feed

0.089-0.198mm/r

Tool post type

4

Max compound slide way

55mm

Max carriage slide travel

75mm

Max carriage travel

366mm

Tailstock travel

60mm

Tailstock taper

MT2

Motor power

600W 1ph/50hz/230v

N.W/G.W

80KG
