Specifications

Unit

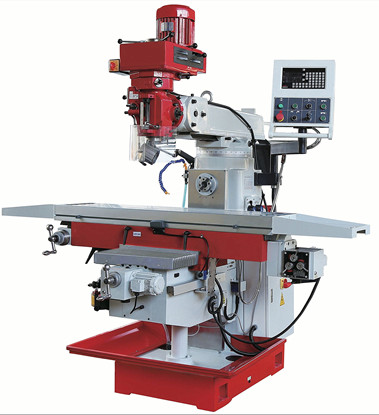

X6333W

Table size

mm

1500x330

Table travel (X/Y/Z)

mm

1000x350x360

Rapid speed of table(X/Y/Z)

mm/min

X:1000 Y:1000 Z:400

Spindle taper

vertical

NT40

horizontal

NT40

Table feed(X/Y/Z)

mm/min

1000/1000/400

Distance between horizontal nose and table surface

mm

0-360

Distance between spindle axis and ram surface

mm

300

Spindle speed range

Vertical

r/min

50-3750(variable)

66-4540(16steps)

Horizontal

40-1300(12steps)

T-slots(No./width/pitch)

mm

3/16/85

Arm travel

mm

500

Main motor power

Vertical

HP

5

Horizontal

3kw

Overall size

mm

2400x1700x2350

Net weight

kg

1980
