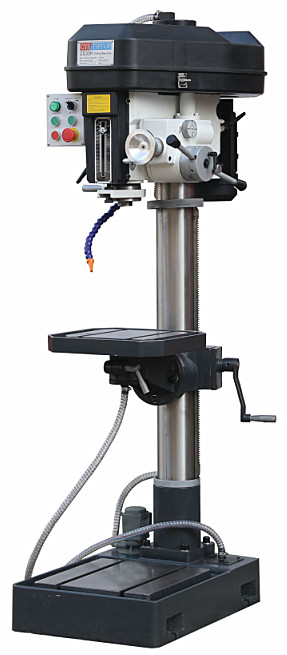

ZS30H drilling and milling machine

Home
About us
Products
News
Feedback
Contact us

Product Description:

Specifications	ZS30H
Max.drilling capacity	Φ30mm
Spindle taper	MT3/MT4/R8
Base dimension	650x450mm/670x470mm(water tank)
Distance spindle to column	197mm
Worktable size	380x350mm
Spindle travel	120mm(auto feeds 106mm)
Diameter of column	115mm
Max distance spindle nose to base	750mm
Spindle speeds range	50hz 100-2080;60hz 140-2436
Motor power	1.5kw
Packing size	9507601885
Weight	300/350kg

supply hydraulic press,radial drilling machine,Pan&Box folder,Shearing machine,rolling machine with high quality and competitive price.hope to cooperate with you.
