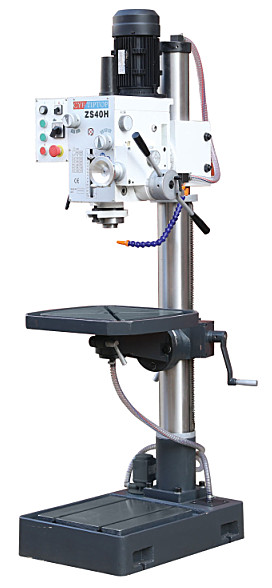

ZS40H drilling and milling machine

Home
About us
Products
News
Feedback
Contact us

Product Description:

Specifications	ZS40H
Max.drilling capacity(Iron/steel)	Φ40/30mm
Spindle taper	MT3/MT4
Base dimension	650x450mm/670x470mm(water tank)
Spindle speed	75-1600rpm 6steps(50hz)
Distance spindle to column	297.5mm
Worktable size	500x460mm
Spindle travel	120mm
Diameter of column	115mm
Max distance spindle nose to table	715mm
Max distance spindle nose to base	1180mm
Motor power	1.5kw
Packing size	7307601885mm
Weight	335/365kg

supply hydraulic press,radial drilling machine,Pan&Box folder,Shearing machine,rolling machine with high quality and competitive price.hope to cooperate with you.
