Specifications

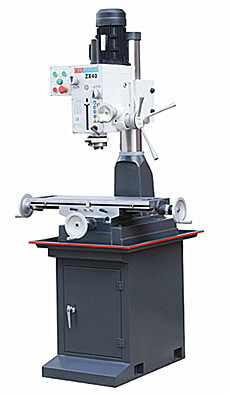

ZX40

Max.drilling capacity(Iron/steel)

40/32mm

Max.milling capacity(face milling)

Φ76mm

Max milling capacity(end milling)

Φ32mm

Max distance spindle to table

450mm

Spindle travel

120mm

Spindle taper

MT3/R8

Spindle speed steps

75-1600rpm,6steps

Head tilt left/right

±45°

Worktable size

730X210mm

Working table longitudinal travel

500mm

Working table transverse travel

210mm

Motor power and speed

1.5kw 1450rpm

Packing size

850*760*1140mm

Weight

285/315kg
