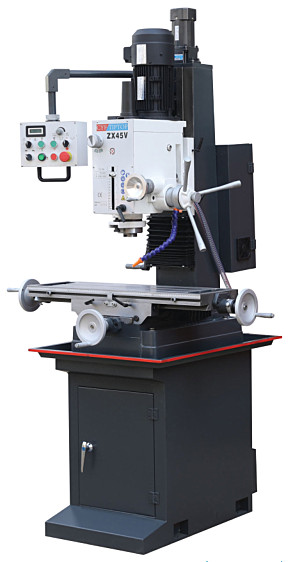

ZX45V drilling and milling machine
    ZX45V drilling and milling machine

Product Description:



Specifications

ZX45V

Max.drilling capacity(Iron/steel)

Φ45/32mm

Max.milling capacity(face milling)

Φ80mm

Max milling capacity(end milling)

Φ32mm

Max distance spindle to table

460mm

Spindle travel

120mm

Spindle taper

MT4/ISO30

Spindle speed steps

75-435rpm,435-2500rpm

Max swing of headstock

±45°

Worktable size

800x240mm

T slot size

14mm

Working table longitudinal travel

560mm

Working table transverse travel

190mm

Z axis travel

350mm

Motor power

1.5kw

Packing size

1240x950x2100mm

Weight

395kg
